POS Terminal
The Posiflex RT-6116 is a POS terminal. Key specifications: LCD: 15.6" TFT LCD; Resolution: 1920x 1080; OS Support: Windows 10 IoT 64 bits. 3D Systems is the exclusive Posiflex distributor in Saudi Arabia, the UAE, Kuwait and Türkiye.
The RT-6116 radiates in its new design – featuring an ultra-slim and sleek look that exhibits elegance. It is uncompromising to the space requirements and provides better cable management and easy maintenance. The RT-6116 is taking POS terminal design into the next level, setting your brand image apart from the others.
With sleek contours, ultra-slim body, and linear rear cover surface, the RT-6116 features a 15.6" PCAP touch screen, and full suite of ports that are hidden in the clean rear cover. No screws can be found on its surface maintaining a neat and sleek look.
Advanced cable management design delivers a truly clutter-free station. The standard base can house the optional Powered USB or USB extension module, while the optional base integrates a UPS backup (RB-5000) for the event of a power failure.
The terminal can be shipped with customer line display or 9.7” / 10” 2nd customer facing LCD display attached and folded, saving deployment time as well as shipping costs.
The patented fan-less technology allows the terminal to run quietly in all kinds of harsh conditions and – at the same time - provides a long service life.
Rear cover can be removed easily and without tools, thus allowing faster installation and serviceability.
| Processor | Intel Whiskey Lake Core i5-8365UE Intel Whiskey Lake Core i7-8665UE |
| OS Support | Windows 10 IoT 64 bits |
| System Memory | DDR4 SO-DIMM x 2, max. 32 GB |
| Storage Device | SATA x 2 |
| RAID Function | Yes SATA SSD default x 2 |
| Intel vPro Support | Yes, with Core i5 & i7 |
| TPM Support | Yes, TPM 2.0 |
| Power Supply | 12V/60W 12/150W with optional PoweredUSB module |
| LCD | 15.6" TFT LCD |
| Resolution | 1920x 1080 |
| Touch | True-flat PCAP touch with multi-touch support (IP65 on front panel) |
| Serial Port | 3, DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports |
| Parallel Port | N/A |
| Standard USB Por | 5, USB 3.0 x 2 + USB 2.0 x 3 |
| PoweredUSB Port | Optional Powered USB module with 24V + 12V (USB 2.0 x 1 will no longer be available with the Powered USB module) |
| OTG USB | N/A |
| LAN Port | 10/100/1000Mb x 1 |
| Display Port | VGA via proprietary connector (12V support for Posiflex monitors) x 1+ mini DP x 1 |
| CR Port | 1control 2 CR via optional Y-cable, supporting 24V cash drawer |
| PS/2 Port | N/A |
| UPS Port | N/A |
| Audio | Internal 2W speaker x 1 |
| Expansion Slot | M.2 slot x 1 |
| Dimension (W x D x H in mm) | 402x207x297 |
| Weight (N. W. in g) | 5 |
| Operation Condition | 0°C - 40°C, 20%RH - 90%RH |
| Storage Condition | -20°C - 70°C, 10%RH - 90%RH |
| WIFI | M.2 WiFi/BT module |
| Camera | 1MP wide angle camera |
| MSR | N/A |
| AG Glass | Cannot coexist with built-in camera |

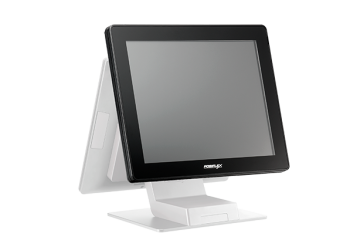

| POS Monitor | Non-touch TFT LCD: 9.7"/10.1"/15"; PCAP touch TFT LCD: 9.7"/10.1" |
| Line Display | 2x 20 rear-mount VFD customer line display |
| External UPS Pack For RT Series | UPS battery module (12V/2300mAh) |
| Attachment | MSR; iButton; 2D Scanner; RFID; Fingerprint Sensor |
3D Systems is the exclusive Posiflex distributor in Saudi Arabia, the UAE, Kuwait and Türkiye. Call 920001866 in Saudi Arabia, +971 4 566 8608 in the UAE or +90 554 850 4088 in Türkiye, or send an online enquiry.
See all POS terminals or every product.
